Flexible earth cable 6 mm² H07V-K (100 m)
Art.No.: 4010-060-100M
No ratings.
This item is not in stock and must be reordered.

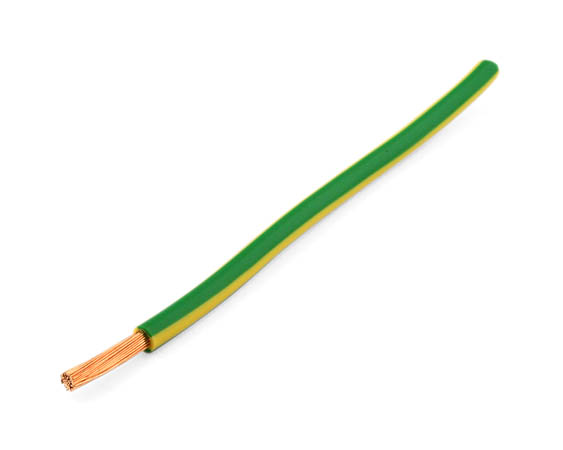

Flexible earth cable 6 mm² H07V-K (100 m)

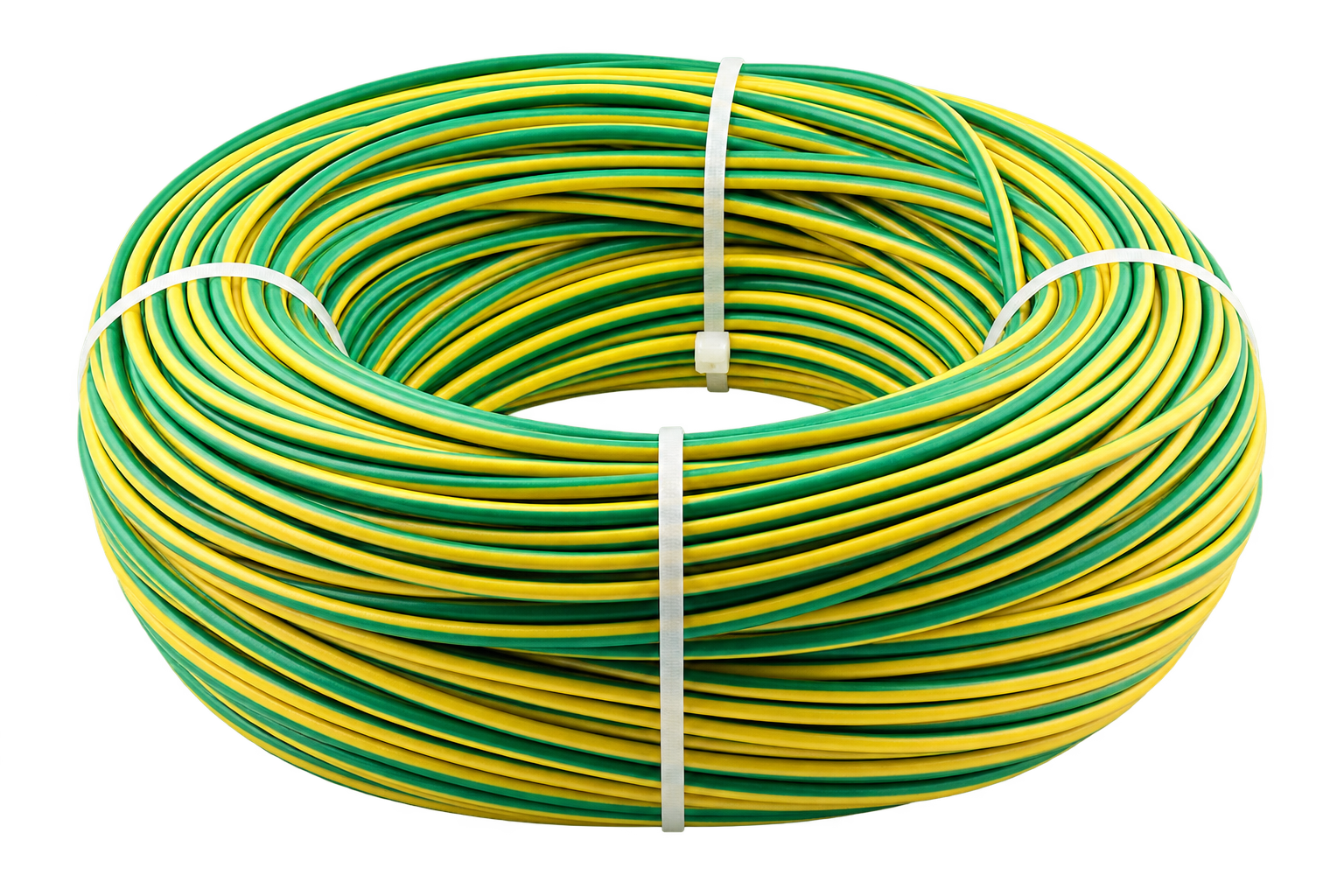

Flexible multi-strand earth cable 6 mm² H07V-K green/yellow (100 m crown).
Features
- Rated voltage: 450/750 V
- Max temperature on core: Permanent=70 °C/CC=160 °C
- Outer diameter: 4.6 mm
- Mass: 70 kg/km
- Radius of curvature: 30 mm
- Approximate crown dimensions: 240 × 90 mm
Standardization
NF C 32-201-3: Conductors and cables insulated with polyvinyl chloride, rated voltage at most equal to 450/750 V
- EN 60332-1 - Flame retardant
- EN 50266 - Fire retardant
- IEC 60332-1 - Flame retardant
- IEC 60332-3 - Non-fire spreading
